👨‍💻 Programming Languages & Flowcharts

What is a Programming Language?

Just as humans communicate using languages like Hindi or English, programmers communicate with computers using programming languages. These languages provide a structured way to write instructions that a computer can understand and execute.

Definition: A programming language is a formal set of rules and syntax used to write instructions (programs) that a computer can execute.

---

Generations of Programming Languages

Programming languages evolved from machine-level to human-friendly:

1. First Generation — Machine Language (1GL)

• Written in pure binary (0s and 1s)
• Directly understood by CPU — no translation needed
• Extremely difficult for humans to write and debug
• Machine-dependent — different for each processor

2. Second Generation — Assembly Language (2GL)

• Uses mnemonics (short codes) instead of binary: ADD, SUB, MOV, JMP
• Requires an Assembler to convert to machine language
• Slightly easier than binary but still complex
• Still machine-dependent

3. Third Generation — High-Level Languages (3GL)

• Written in English-like syntax that humans can read
• Needs a Compiler or Interpreter to convert to machine language
• Machine-independent (portable) — same code runs on different computers
• Most popular generation

Language	Created By	Year	Key Use
FORTRAN	IBM (John Backus)	1957	Scientific computing (FORmula TRANslation)
ALGOL	Friedrich L. Bauer, Hermann Bottenbruch and collaborators	1958	Algorithmic and scientific problem solving
COBOL	Grace Hopper	1959	Business applications (COmmon Business Oriented Language)
BASIC	John G. Kemeny & Thomas E. Kurtz	1964	Teaching beginners
C	Dennis Ritchie	1972	System programming, OS development
C++	Bjarne Stroustrup	1979	Object-Oriented, games, applications
Pascal	Niklaus Wirth	1970	Structured and procedural programming education
Java	James Gosling (Sun)	1995	Web, mobile (Android), enterprise
Python	Guido van Rossum	1991	AI, Data Science, web, scripting
JavaScript	Brendan Eich	1995	Web pages, interactive websites

4. Fourth Generation (4GL)

• Designed for specific purposes — database queries, reports
• Even closer to natural English
• Examples: SQL (database queries), MATLAB, R

5. Fifth Generation (5GL)

• Languages for Artificial Intelligence
• Focus on problem-solving rather than step-by-step instructions
• Examples: Prolog, LISP, Mercury

---

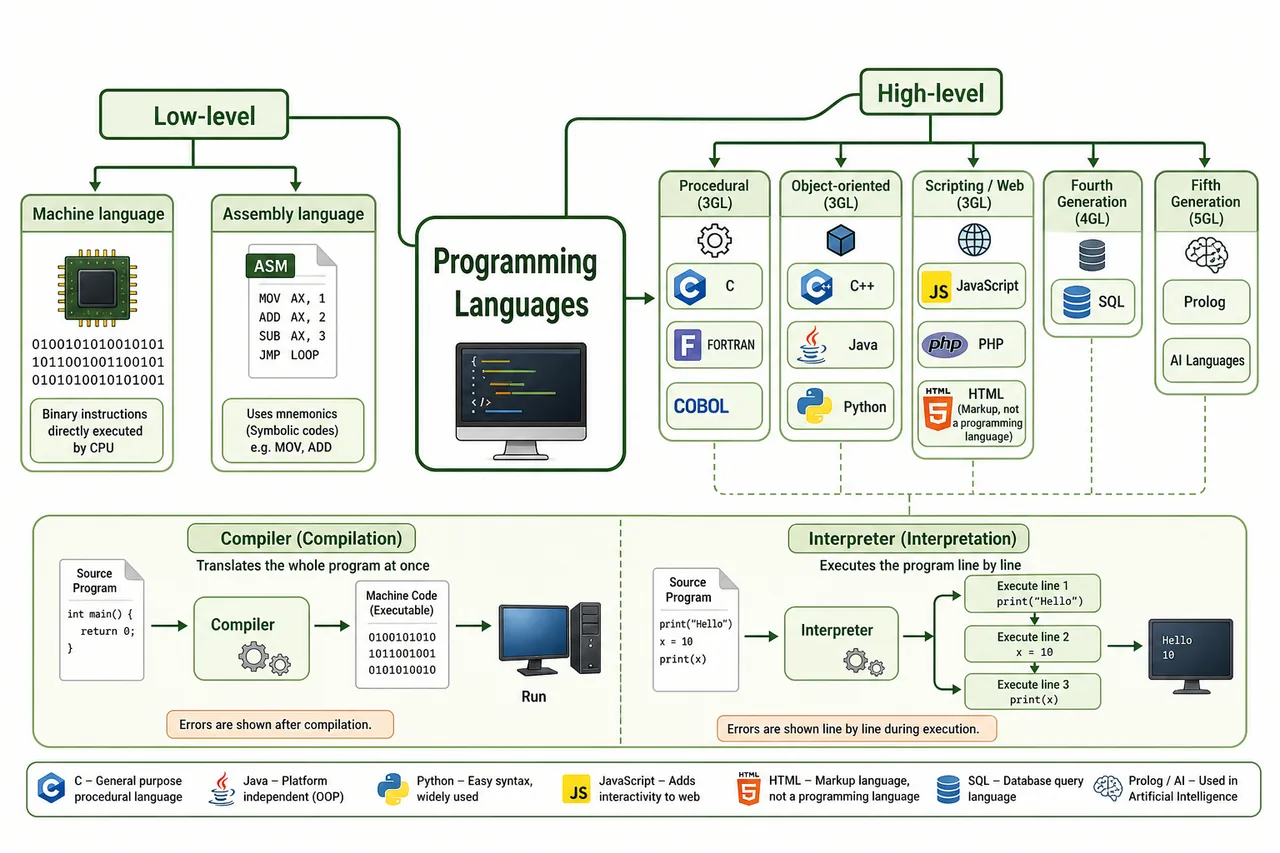

Low-Level vs High-Level Languages

Feature	Low-Level (1GL, 2GL)	High-Level (3GL, 4GL, 5GL)
Readability	Difficult (binary/mnemonics)	Easy (English-like)
Speed	Faster execution	Slower (needs translation)
Portability	Machine-dependent	Machine-independent
Examples	Machine code, Assembly	C, Java, Python
Translation	Assembler	Compiler/Interpreter
Memory Control	Direct hardware access	Abstracted from hardware

---

Algorithms

An algorithm is a step-by-step procedure to solve a problem. Before writing a program, a programmer first designs an algorithm.

Properties of a Good Algorithm:

1. Finiteness — Must end after a finite number of steps
2. Definiteness — Each step must be clear and unambiguous
3. Input — Takes zero or more inputs
4. Output — Produces at least one output
5. Effectiveness — Each step must be doable in finite time

Example Algorithm: Finding the largest of three numbers

1. START
2. Read three numbers A, B, C
3. If A > B and A > C, then LARGEST = A
4. Else if B > C, then LARGEST = B
5. Else LARGEST = C
6. Print LARGEST
7. STOP

---

Flowcharts

A flowchart is a diagrammatic representation of an algorithm using standard symbols connected by arrows showing the flow of logic.

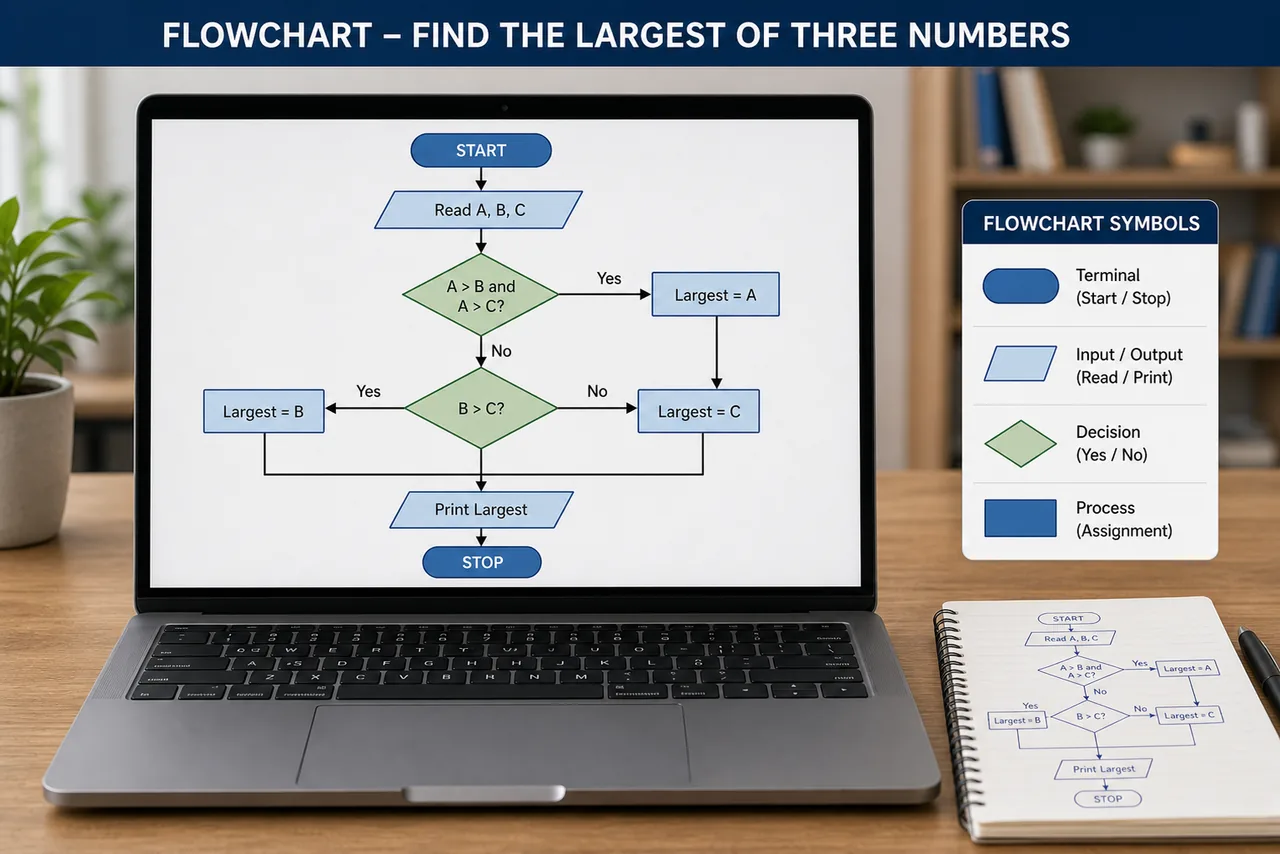

Example Flowchart: Finding Largest of Three Numbers

Standard Flowchart Symbols

Symbol	Shape	Purpose
Terminal	Oval/Rounded rectangle	START and STOP
Process	Rectangle	Calculations, operations
Decision	Diamond	Yes/No or True/False branching
Input/Output	Parallelogram	Reading input or displaying output
Flow Lines	Arrows	Direction of flow
Connector	Small circle	Connecting different parts

Advantages of Flowcharts

• Easy to understand visually
• Helps in debugging and error finding
• Serves as documentation
• Makes programming easier

Limitations

• Complex for large programs
• Difficult to modify once drawn
• No standard for detail level

---

Key Programming Concepts

Concept	Meaning
Source Code	The program as written by the programmer
Object Code	Machine-language version after compilation
Executable	Final runnable program (.exe file)
Bug	An error in a program
Debugging	Finding and fixing bugs
Syntax	Rules of the programming language (grammar)
Syntax Error	Violation of language rules (typo, missing semicolon)
Logic Error	Program runs but gives wrong results
Runtime Error	Error during program execution (e.g., divide by zero)

---

Python — The AI/ML Language

Python is currently the most popular language for Artificial Intelligence and Machine Learning. Key reasons:

• Simple syntax — reads almost like English, easy for beginners
• Extensive libraries: NumPy (numbers), Pandas (data analysis), TensorFlow & PyTorch (deep learning), Scikit-learn (ML), Matplotlib (graphs)
• Used in: AI, Data Science, Web Development (Django, Flask), Automation, Scripting
• Interpreted language — runs line by line (no compilation needed)

---

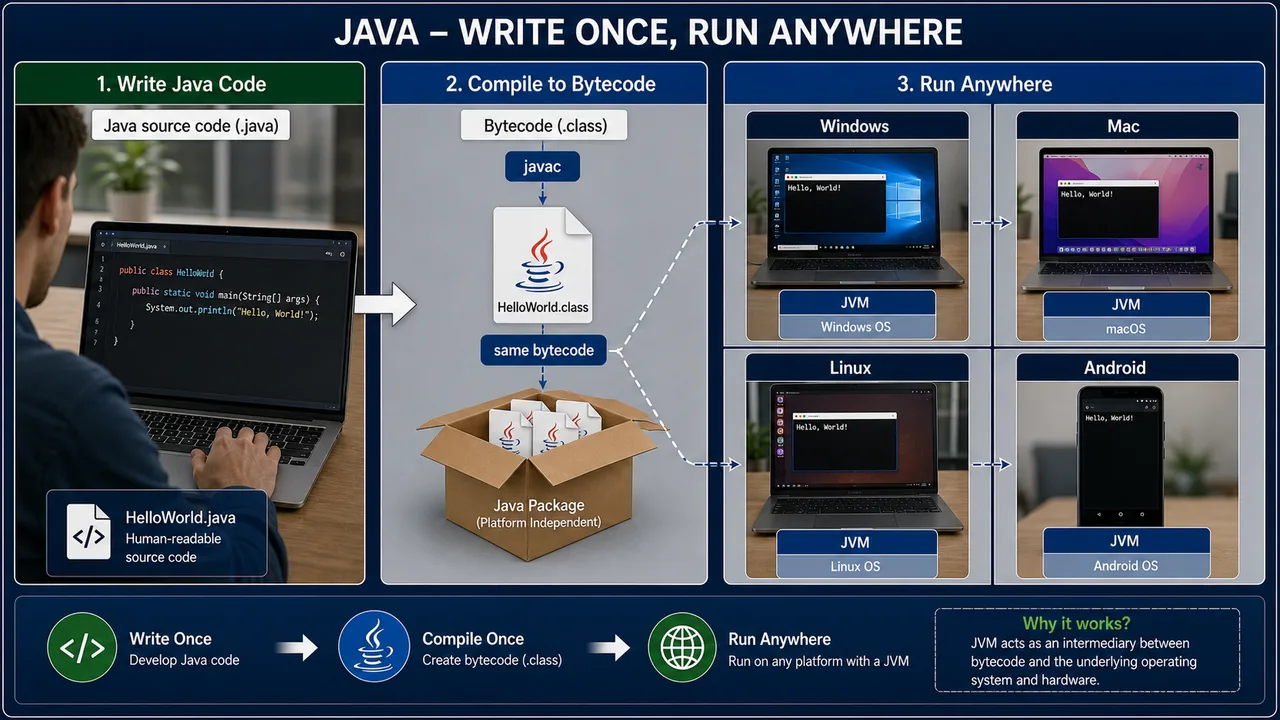

Java — Platform Independent

Java's motto: "Write Once, Run Anywhere" (WORA)

• Java programs compile into bytecode, which runs on the JVM (Java Virtual Machine)
• JVM is available on all platforms (Windows, Mac, Linux, Android)
• This makes Java platform-independent — same program runs everywhere
• Used in: Android apps, enterprise applications, web servers, banking systems

---

HTML is NOT a Programming Language

HTML (HyperText Markup Language) is a markup language, not a programming language. It defines the structure of web pages using tags like <h1>, <p>, <img> — but it cannot perform logic, loops, or calculations.

• CSS — styles the appearance (colors, fonts, layout)
• JavaScript — adds interactivity and logic to web pages
• Together: HTML (structure) + CSS (style) + JavaScript (behavior) = modern websites

---

OOP — Object-Oriented Programming Concepts

Concept	Meaning
Class	Blueprint/template for creating objects (e.g., "Car" class defines properties like color, speed)
Object	Instance of a class (e.g., "MyCar" is an object of Car class)

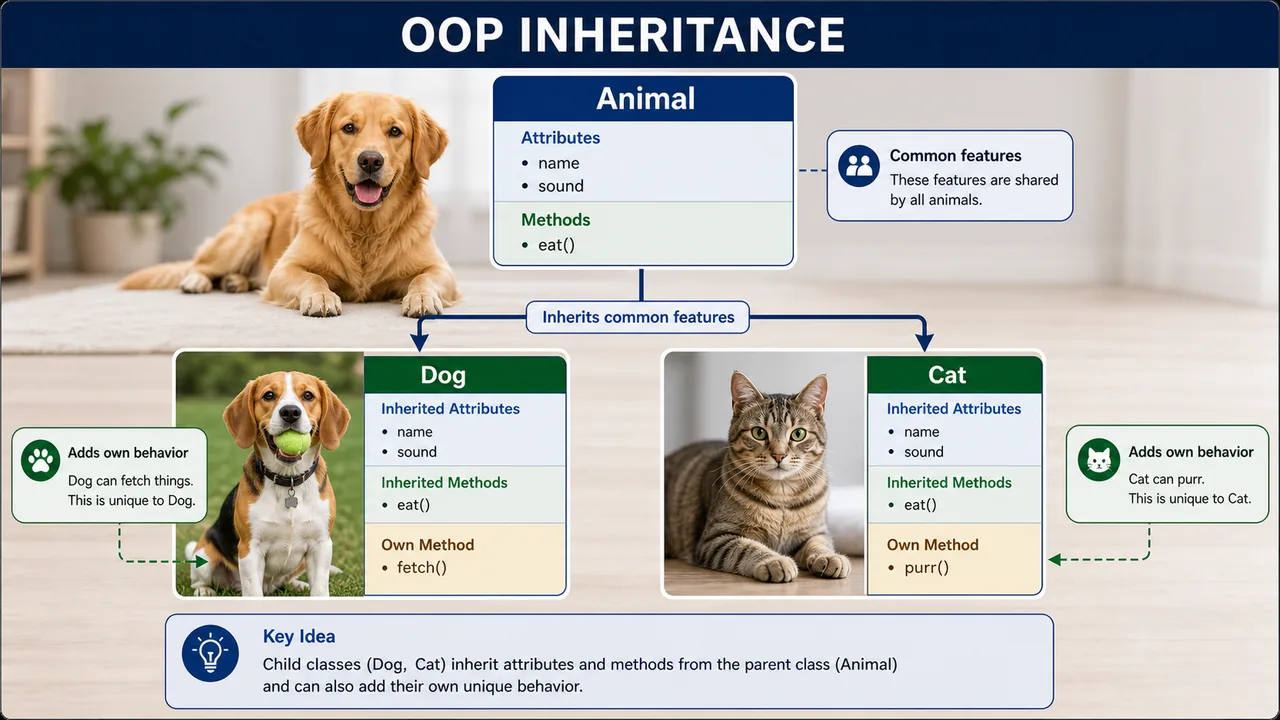

Inheritance	A class can inherit properties/methods from another class (parent → child)
Polymorphism	Same function behaves differently based on context ("poly" = many, "morph" = forms)
Encapsulation	Bundling data and methods together, hiding internal details (data hiding)
Abstraction	Showing only essential features, hiding complexity (e.g., driving a car without knowing engine internals)

OOP languages: Java, C++, Python, C#

---

Development Tools & Concepts

IDE (Integrated Development Environment)

An IDE is a software application that provides tools for writing, testing, and debugging code — all in one place.

IDE	Used For
VS Code	Multi-language (most popular, free, by Microsoft)
PyCharm	Python development
Eclipse	Java development
NetBeans	Java development
Android Studio	Android app development

Version Control — Git

Git is a version control system that tracks changes in code over time. Developers use GitHub or GitLab for online collaboration, code sharing, and backup.

API (Application Programming Interface)

An API allows different programs or systems to communicate with each other. For example, a weather app on your phone uses an API to fetch weather data from a remote server.

Pseudocode

Pseudocode is an informal, plain-English description of algorithm steps in a structured format. It is NOT actual code — it helps plan logic before writing real code.

---

Important Pioneers

Person	Contribution
John Backus	Created FORTRAN (1957) — first high-level programming language
Niklaus Wirth	Created Pascal — an important structured procedural language
Grace Hopper	Coined the terms "bug" and "debugging"; developed COBOL; pioneered compiler development
Dennis Ritchie	Created C language (1972); co-created UNIX operating system
James Gosling	Created Java (1995) at Sun Microsystems
Guido van Rossum	Created Python (1991)
John G. Kemeny & Thomas E. Kurtz	Created BASIC as a beginner-friendly language in 1964
Charles Babbage	Father of Computer — designed Analytical Engine
Ada Lovelace	First computer programmer — wrote algorithm for Analytical Engine

---

Summary Points

Concept	Key Details
1GL Machine Language	Binary (0/1), fastest, hardest to write, machine-dependent
2GL Assembly	Mnemonics (ADD, MOV), needs Assembler, machine-dependent
3GL High-Level	English-like, needs Compiler/Interpreter, machine-independent
FORTRAN	First high-level language, 1957, John Backus, scientific computing
COBOL	1959, Grace Hopper, business applications
C	1972, Dennis Ritchie, system programming, UNIX
C++	Object-Oriented extension of C, Bjarne Stroustrup
Java	1995, James Gosling, WORA, JVM bytecode, Android
Python	1991, Guido van Rossum, AI/ML, NumPy/Pandas/TensorFlow, interpreted
SQL	4GL, database query language
HTML	NOT a programming language — markup for web structure
OOP — Class	Blueprint/template for creating objects
OOP — Object	Instance of a class
OOP — Inheritance	Child class inherits from parent class
OOP — Polymorphism	Same function, different behavior (poly=many, morph=forms)
OOP — Encapsulation	Bundling data + methods, hiding internals
OOP — Abstraction	Show essential features, hide complexity
IDE	Integrated Development Environment — VS Code (most popular, Microsoft)
Git	Version control — tracks code changes; GitHub for collaboration
API	Application Programming Interface — programs communicate
Grace Hopper	Coined "bug"/"debugging", developed COBOL, pioneered compilers
Algorithm	Step-by-step problem-solving procedure (5 properties)
Flowchart	Visual diagram — Oval, Rectangle, Diamond, Parallelogram
Pseudocode	Informal English-like algorithm — NOT actual code
Bug	Error in program
Debugging	Finding and fixing bugs

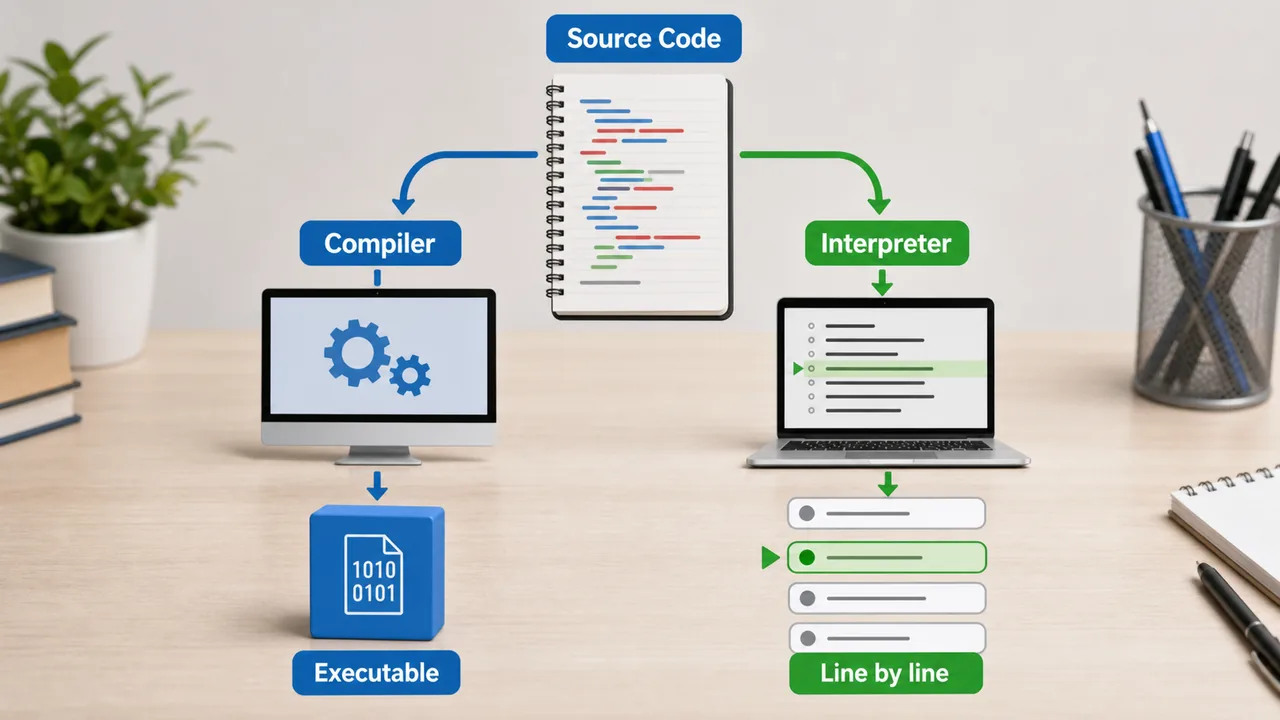

Compiler	Translates entire program → .exe (C, C++)
Interpreter	Translates line by line (Python, BASIC)
