🗄️ DBMS & SQL Fundamentals

What is a Database?

A database is an organized collection of structured data stored electronically. Think of it as a digital filing cabinet where information is arranged systematically for easy access, retrieval, and management.

Examples of databases in daily life:

• Bank records (account numbers, balances, transactions)
• Aadhaar database (biometric data of all Indians)
• PM-KISAN beneficiary list (farmer details, payment records)
• School records (student names, marks, attendance)

---

What is DBMS?

A DBMS (Database Management System) is software that manages databases — it allows users to create, read, update, and delete data while maintaining security and integrity.

Popular DBMS Software:

DBMS	Developer	Type
MySQL	Oracle (open source)	Relational
MS Access	Microsoft	Relational
Oracle	Oracle Corporation	Relational
PostgreSQL	Community (open source)	Relational
MongoDB	MongoDB Inc.	Non-relational (NoSQL)
SQL Server	Microsoft	Relational

---

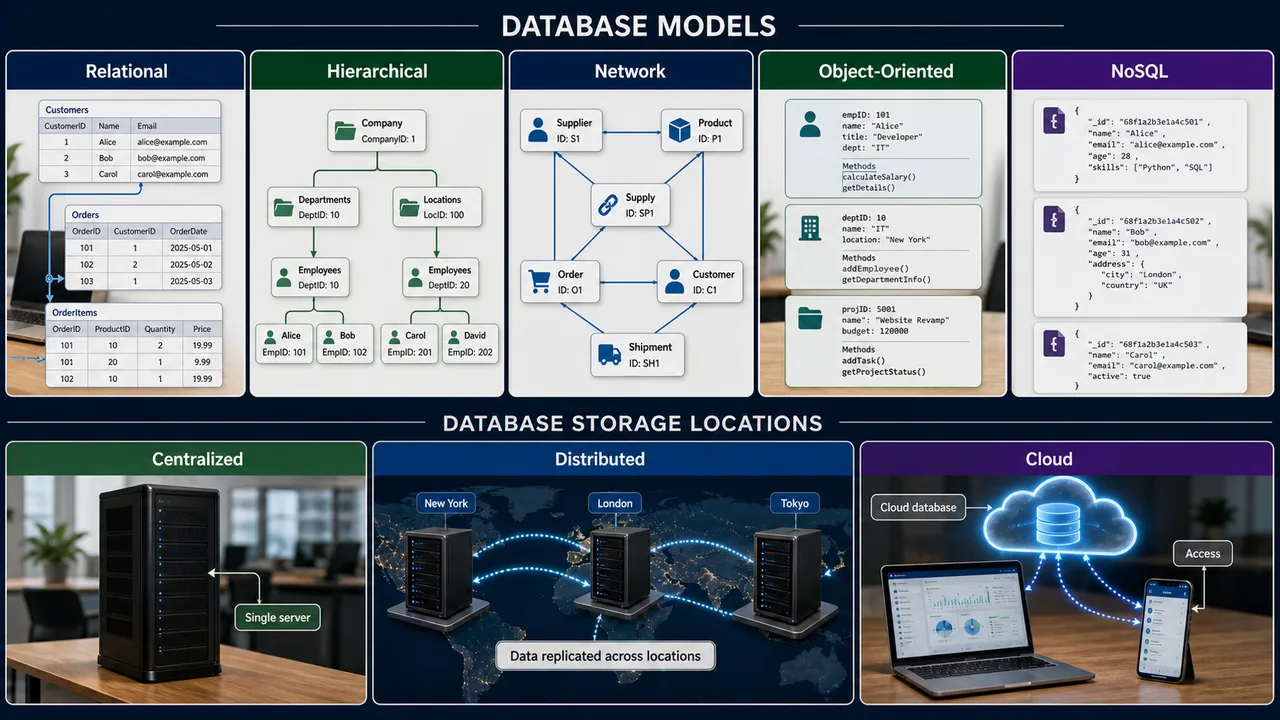

Types of Database Models

Model	Structure	Example
Relational (RDBMS)	Data in tables with rows and columns	MySQL, Oracle, Access
Hierarchical	Tree-like structure (parent-child)	IBM IMS
Network	Complex web of relationships	IDMS
Object-Oriented	Data as objects (like programming)	db4o
NoSQL	Flexible, non-tabular (document, key-value)	MongoDB, Cassandra

RDBMS (Relational DBMS) is the most widely used type. Data is stored in tables with defined relationships between them.

---

Database by Location

Type	Description
Centralized	All data on one computer/server
Distributed	Data spread across multiple locations/servers
Cloud	Data stored on remote cloud servers (AWS, Azure, Google Cloud)

---

Relational Database Concepts

Tables, Records, and Fields

Term	Meaning	Also Called
Table	Collection of related data in rows/columns	Relation
Record	One row — a complete entry	Tuple
Field	One column — a single attribute	Attribute
Cell	Intersection of one row and one column	Value

Example — Farmer Database:

FarmerID	Name	Village	Crop	Area (Hectare)
101	Ram Singh	Sultanpur	Wheat	2.5
102	Geeta Devi	Faizabad	Rice	1.8
103	Anil Kumar	Varanasi	Sugarcane	3.2

Here: FarmerID, Name, Village, Crop, Area are fields. Each row is a record. The whole thing is a table.

---

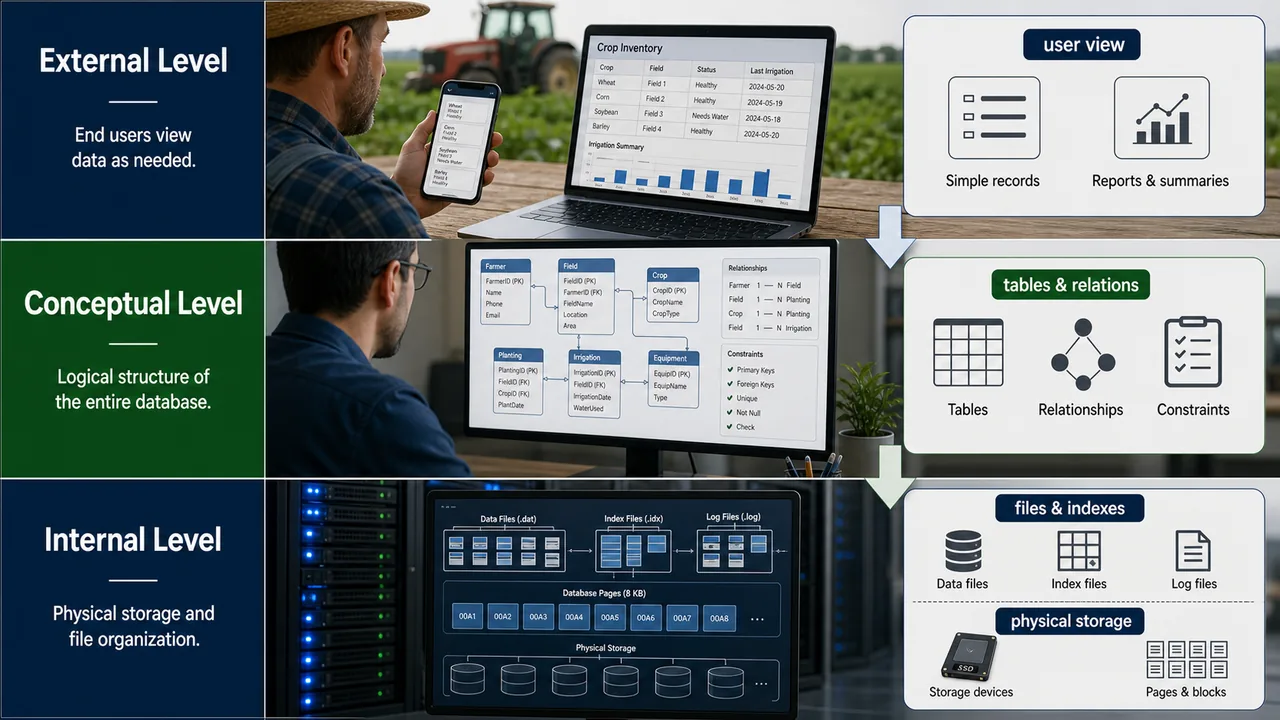

DBMS Architecture — Three Levels of Abstraction

A DBMS organizes data access through three levels, each providing a different view of the data:

Level	Who Uses It	What They See
External Level (View)	End users / Applications	Only the data relevant to them (e.g., a farmer sees only their own records)
Conceptual Level (Logical)	Database designers / DBAs	The full logical structure — all tables, relationships, constraints
Internal Level (Physical)	System / Storage engine	How data is physically stored on disk — files, indexes, blocks

This separation is called data abstraction — it hides complexity from users while giving full control to administrators.

Key DBMS Components

Component	Role
Query Processor	Translates user queries (SQL) into low-level instructions the database can execute
Transaction Manager	Ensures all operations complete fully or not at all (ACID properties)
Storage Manager	Handles reading/writing data to physical storage devices
Data Dictionary	A system catalog that stores metadata — definitions of all tables, fields, types, constraints
Report Writer	Extracts data and presents it in formatted reports

What is Metadata?

Metadata is "data about data" — it describes the structure, type, and rules of the actual data stored.

Metadata Type	Example
Descriptive	Table name = "Farmers", Column name = "Crop"
Structural	FarmerID is INTEGER, Name is VARCHAR(50)
Administrative	Created on 28/03/2026, Last modified by Admin

---

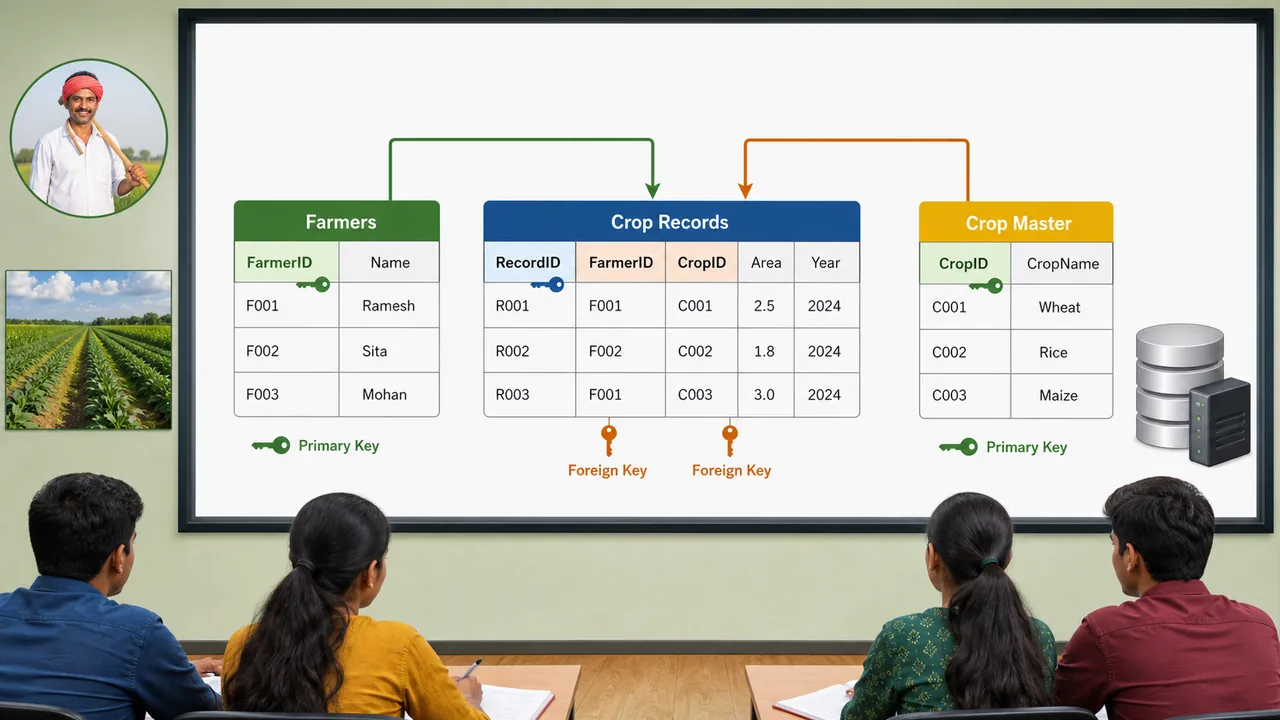

Keys in Databases

Key Type	Purpose	Example
Primary Key	Uniquely identifies each record — no duplicates, no nulls	FarmerID (101, 102, 103)
Foreign Key	Links to primary key of another table — creates relationships	CropID in Farmer table → references Crop table
Candidate Key	Any field that could be a primary key	FarmerID, Aadhaar Number
Composite Key	Primary key made of two or more fields combined	(StudentID + SubjectID)
Unique Key	Like primary key but allows one NULL value	Email address

---

SQL — Structured Query Language

SQL (Structured Query Language) is the standard language for communicating with relational databases. It allows you to create, read, update, and delete data.

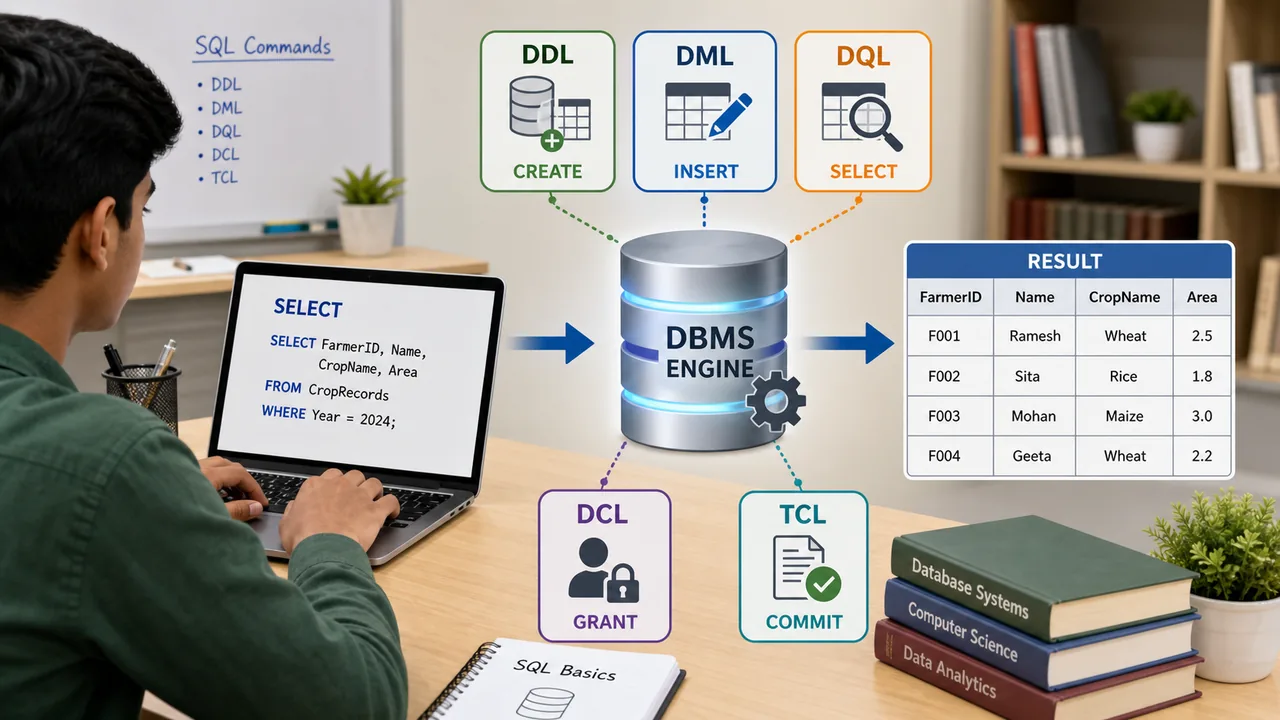

SQL Command Categories

Category	Full Form	Purpose	Commands
DDL	Data Definition Language	Define/modify table structure	CREATE, ALTER, DROP, TRUNCATE
DML	Data Manipulation Language	Add/modify/delete data	INSERT, UPDATE, DELETE
DQL	Data Query Language	Retrieve data	SELECT
DCL	Data Control Language	Permissions	GRANT, REVOKE
TCL	Transaction Control Language	Transaction management	COMMIT, ROLLBACK

Essential SQL Commands

CREATE TABLE — Creates a new table

CREATE TABLE Farmers (FarmerID INT PRIMARY KEY, Name VARCHAR(50), Crop VARCHAR(30));

INSERT INTO — Adds a new record

INSERT INTO Farmers VALUES (101, 'Ram Singh', 'Wheat');

SELECT — Retrieves data

SELECT * FROM Farmers;                    -- All records
SELECT Name, Crop FROM Farmers;           -- Specific columns
SELECT * FROM Farmers WHERE Crop='Wheat'; -- With condition

UPDATE — Modifies existing data

UPDATE Farmers SET Crop='Rice' WHERE FarmerID=101;

DELETE — Removes records

DELETE FROM Farmers WHERE FarmerID=103;

DROP TABLE — Deletes entire table

DROP TABLE Farmers;

---

Decision Support Systems (DSS)

A Decision Support System is a computer-based information system that helps managers and decision-makers analyze complex data and make better-informed decisions. Unlike simple databases that just store data, a DSS actively helps you interpret and act on that data.

Types of Decisions

Decision Type	Clarity	Example	DSS Role
Structured	Clear rules exist	Calculating farmer subsidy based on land size	Automate using checklists and formulas
Semi-Structured	Some rules, some judgment	Deciding which crop to recommend for a region	Provide data analysis + human judgment
Unstructured	No clear rules	Setting long-term agriculture policy for a state	Provide trends and scenarios for human decision

Most real-world DSS tools focus on semi-structured decisions — where data helps but human expertise is still needed.

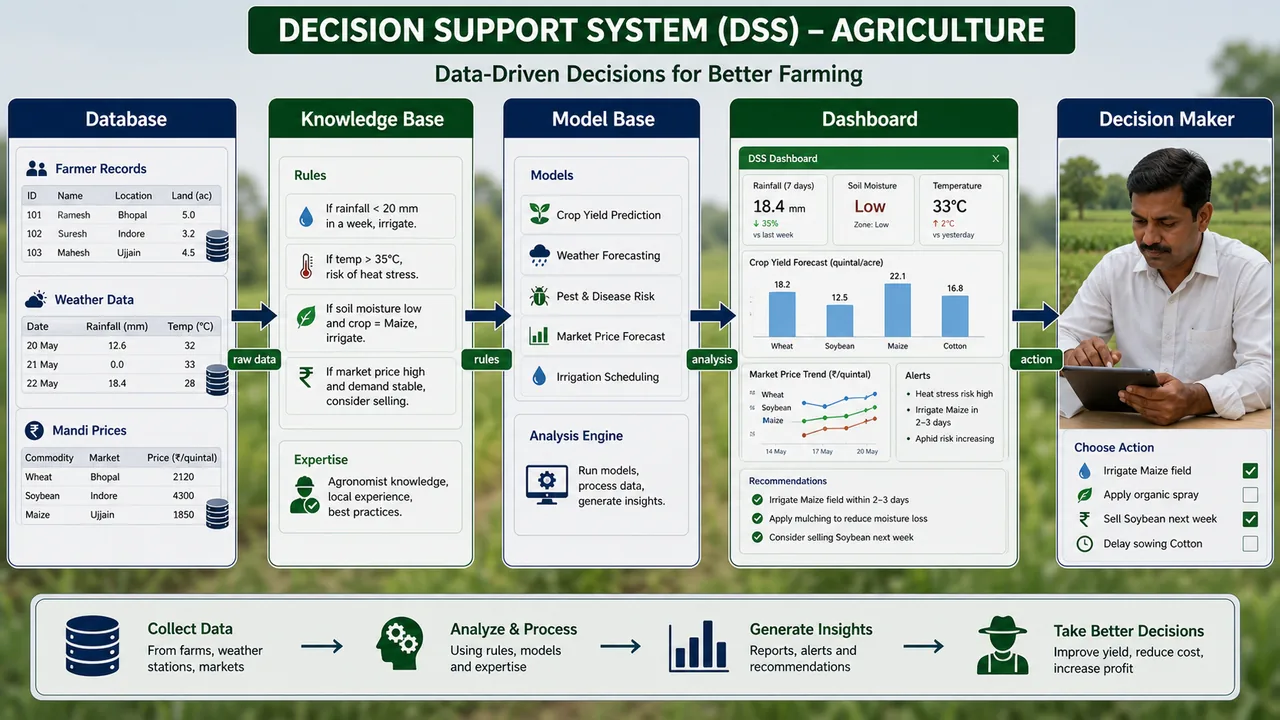

Components of DSS

Component	What it Does
Database	Stores raw data — farmer records, weather history, market prices
Model Base	Mathematical and statistical models that analyze the data — forecasting, optimization, simulation
User Interface	Dashboard, charts, reports — how the decision-maker interacts with the system
Knowledge Base	Rules and expertise stored in the system (optional, used in advanced DSS)

DSS Limitations

• Data quality — Poor or incomplete data leads to poor decisions (GIGO applies here too)
• Over-reliance — Users may blindly trust DSS output without applying judgment
• Complexity — Advanced models may be difficult for non-technical users to interpret
• Cost — Building and maintaining a DSS requires investment in software, data, and training
• Inappropriate analysis — DSS may run statistical tests on data even when they are not suitable

DSS in Agriculture

Application	How DSS Helps
Crop selection	Analyzes soil type, weather forecast, market prices to recommend the best crop
Irrigation scheduling	Combines soil moisture data + weather prediction to decide when and how much to irrigate
Pest management	Predicts pest outbreaks based on temperature, humidity, and historical patterns
Market intelligence	Tracks mandi prices across regions to suggest the best time and place to sell
Fertilizer planning	Recommends fertilizer type and quantity based on soil health card data
Disaster response	Analyzes weather alerts and crop insurance data to trigger early warnings

---

Summary Points

Concept	Key Details
Database	Organized collection of structured data
DBMS	Software to manage databases — MySQL, Oracle, Access
RDBMS	Relational — data in tables, most widely used
Table	Rows (records/tuples) × Columns (fields/attributes)
Primary Key	Unique identifier — no duplicates, no nulls
Foreign Key	Links to primary key of another table
SQL	Structured Query Language — standard for RDBMS
DDL	CREATE, ALTER, DROP — table structure
DML	INSERT, UPDATE, DELETE — data manipulation
DQL	SELECT — data retrieval
SELECT	Retrieves data: SELECT * FROM table WHERE condition
INSERT	Adds record: INSERT INTO table VALUES (...)
UPDATE	Modifies: UPDATE table SET field=value WHERE condition
DELETE	Removes: DELETE FROM table WHERE condition
3 Levels	External (user view), Conceptual (logical), Internal (physical)
Data Dictionary	System catalog — stores metadata (table definitions, field types)
Metadata	Data about data — Descriptive, Structural, Administrative
Query Processor	Converts SQL queries into low-level instructions
DSS	Decision Support System — helps analyze data for decisions
Structured Decision	Clear rules exist — can be automated
Semi-Structured	Some rules + human judgment — main DSS focus
Unstructured	No clear rules — requires expertise and experience
DSS Components	Database + Model Base + User Interface + Knowledge Base
DSS in Agriculture	Crop selection, irrigation, pest management, market prices
DSS Limitation	Poor data quality, over-reliance, cost, inappropriate analysis
