Creating Graphs

CREATING GRAPHS

Graphs or Charts

• The graphical representation of data is called graph or chart.
• The data entered in the excel sheet can be represented by a graph or a chart.
• MSEXCEL supports a wide variety of graphs.
• Example of graphs:
  • Column, Line, Bar, Pie, Area, Doughnut, Radar, Surface, Bubble, Stock etc.

Column Graph

• It shows data change over a period of time or illustrates comparisons among items.
• Categories are organized horizontally and values vertically.
• It is an idel chart for showing the variation in the value of an item over period of time.__

Bar Graph

• Bar graph illustrates comparison among individual items.
• Categories are vertically organized and values horizontally.

Line Graph

• A line graph shows trends in data at equal intervals.
• It is very useful to show the change in the value over a period of time.
• It will show very clearly whether a value is ascending or descending.

Pie Chart

• Pie chart is used to plot data for a single data series.
• Each data point is represented by one piece of the circular pie chart.
• The size of each piece is proportional to the value it represents, so all the data points taken together will form circle.

Area Graph

• Area chart is similar to line chart.
• But plots series one above the other with different colors and shades.
• It emphasizes the magnitude of change over a period of time.

XY (Scatter) Graph

• It plots each point with a mark of two groups of numbers as one series of XY coordinates.

• It shows uneven intervals of data and it is commonly used for scientific data.

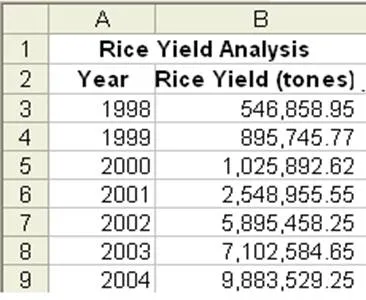

• Create a spreadsheet with data rice yield in tones from the year 1998 to 2004 as shown below:

.

• Go to Insert Menu select Chart and click.

First Step

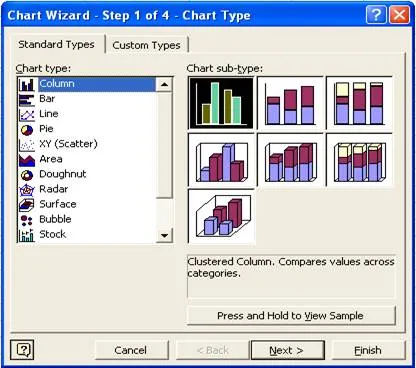

• A dialog box of chart wizard will appear, select the required type of chart from the chart type.

• Then select the chart sub type according to your requirement.

Second Step

• Select the data range in this step.
• To give enter data range move the cursor on excel sheet and
  • by clicking select the data area you want or
  • type cells position if you know exactly which area you want.
• Click on the Next button.

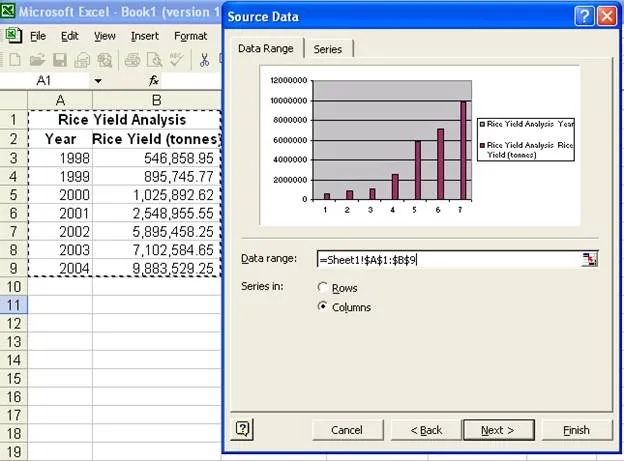

• the data range selected in our example is **Sheet1!$A$1:$B$9
• Sheet1 we are in sheet1 in MS Excel.
• $ Sign is used to represent the absolute position of the data in MS Excel.
• The range is to conform that the chart is being prepared of the proper sheet of the file.
• On confirming click on Next button.

Third Step

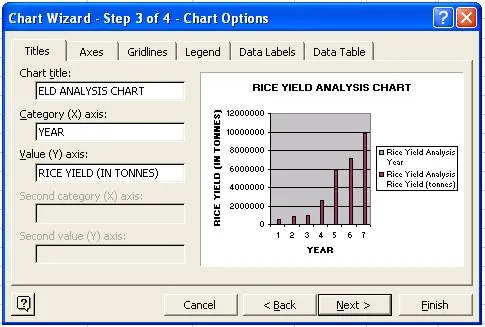

• Here the Chart title, Category and Value information are entered, which will be displayed when the chart is viewed.

• Click Next button.

Fourth Step

• This step will provide in the way you want to place the chart.
• Select the appropriate option available in the chart wizaerd.

• Click the Finish button.

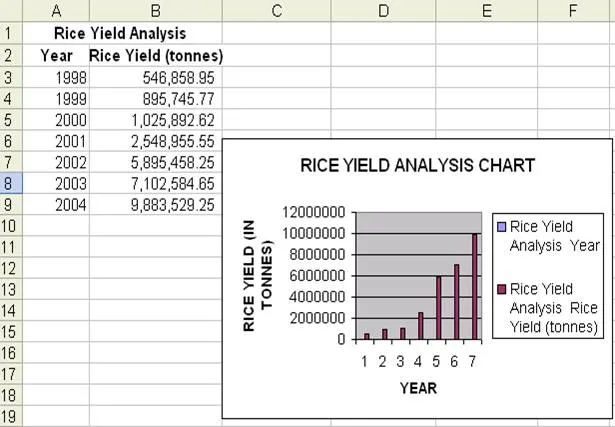

• The chart will be as shown below:

Moving Chart

• If the chart needs to be placed in different position, then we can move the chart wherever we want.
• To move the chart select the chart by clicking on it without leving the mouse button, drag in the direction you want.
• The chart will move and then release it where you want.

Changing the Chart Size

• To change the chart size, select the chart by clicking on it.
• You will get eight small rectangular boxes around the chart.
• Now move the cursor to the border of the chart and the mouse pointer changes to double headed arrow cursor.
• Then press the left mouse button and drag.
• If you want to reduce the size, drag towards the centre of the chart, else in opposite direction to increase the size of the chart.

Changing the Chart Type

• Select the chart
• Click the right mouse button

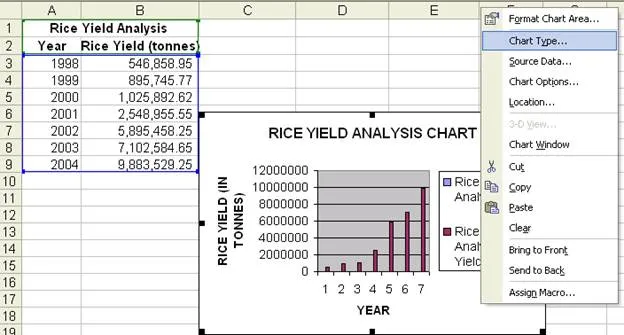

• From the right context menu select Chat type

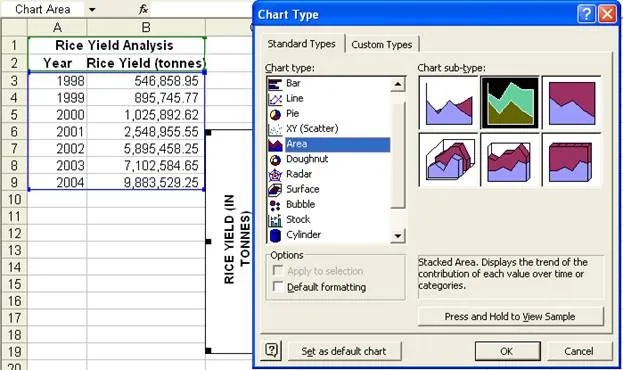

• Select the required chart type from the chart type window.

• Click OK.

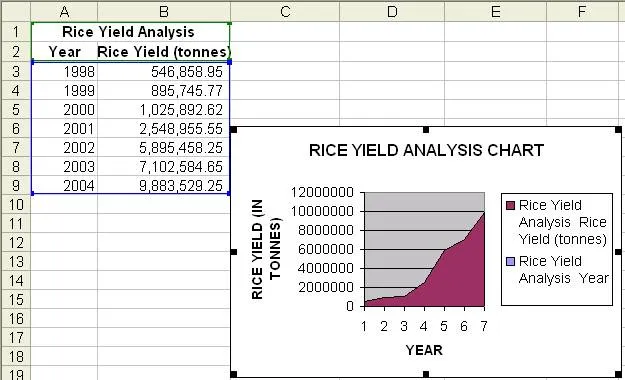

• If the selected chart type is Area type then the chart will be as shown below:

---|---

---
